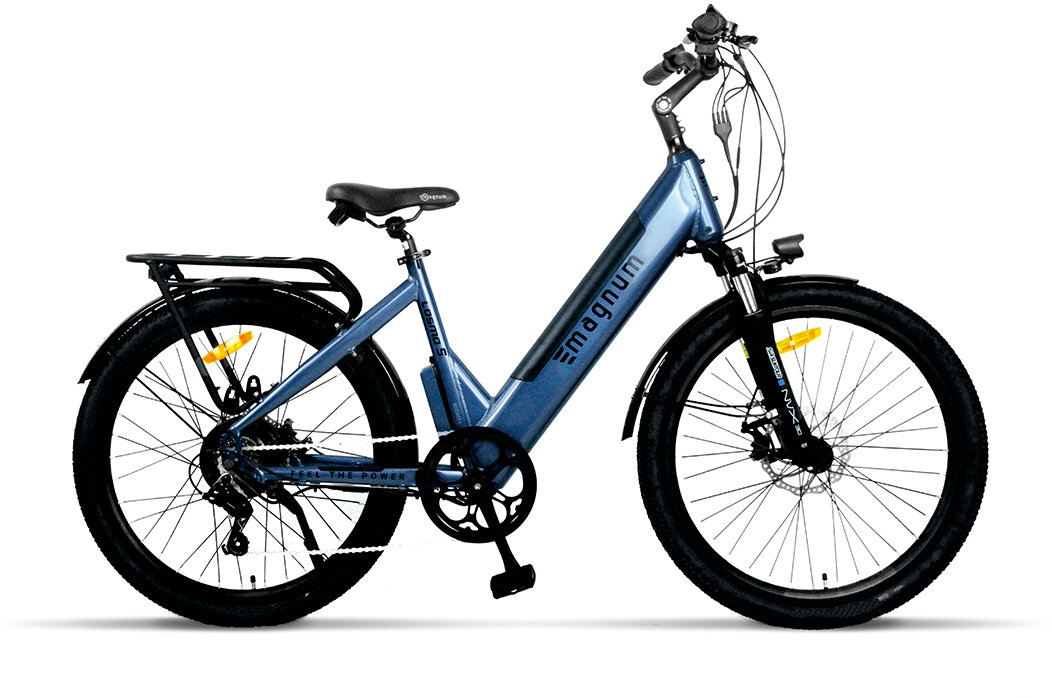

Magnum Electric Bikes Cosmo S
$1,999.00
Details
The Magnum Cosmo S is a budget friendly option in our popular Cosmo series. The Cosmo S has a light low step frame with a fully integrated battery. The power system is 48 Volts running on a 500 Watt motor and a 15Ah battery for the range and power you need to run errands or go on a relaxing bike ride.
COSMO S MEASUREMENTS
A. MAX SEAT HEIGHT 56cm
B. MIN SEAT HEIGHT 56cm
C. STANDOVER HEIGHT 47cm
D. HANDLEBAR HEIGHT 105.5cm-110.5cm
E. WHEELBASE 113cm
F. TOTAL LENGTH 176cm
REACH 52cm
SEAT TUBE LENGTH 46cm
Max load 275 lbs
- Controlled by the display (power on/off)
- Rear brake light activated when braking
- Pedal Assist
- Twist Throttle
Specs
| Motor | 500W |
|---|---|
| Battery | 48v / 15ah / 720wh |
| Display | LCD Display; Display Readouts: Battery Level (4 Bars), Speed Kilometers Only, Assist Level (0-3), Odometer, Trip Distance |
| Max Assisted Speed | 25mph |
| Range | 30 – 50 Miles (Depending On Riding Style, Terrain, Rider Weight, and Pedal Assist Level.) |
| Charger | Estimated Charge Time: 7.5 Hrs |
| Fork | SR Suntour NVX Suspension Fork with lockout and preload adjustment |
| Tires | Innova 26" x 2.35" Black |
| Crankset | Lunfeng 52T*170mm |
| Rear Derailleur | Shimano Tourney Derailleur 6 Speed |
| Shifters | Shimano 7 Speed |
| Tape/Grips | Black Faux leather with stitching |
| Stem | 25.4mm Adjustable |
| Brakes | Artek Mechanical Disc Brakes |
| Pedals | Feimin City Style |
| Saddle | QF Saddle Black |
| Seatpost | 27.2*300mm |
| Accessories & Extras | Aluminum Alloy front and rear fenders; Rear carrier rack |
* Subject to change without notice.
Part Numbers
| Option | MPN |
|---|---|
| Metallic Blue | Cosmo S - BLU |
| Metallic Green | Cosmo S - GRN |
| Gunmetal | Cosmo S - GRY |
| Champagne | Cosmo S - CHP |
| Silver | Cosmo S - SLV |
| Metallic Black | Cosmo S - BLK |
