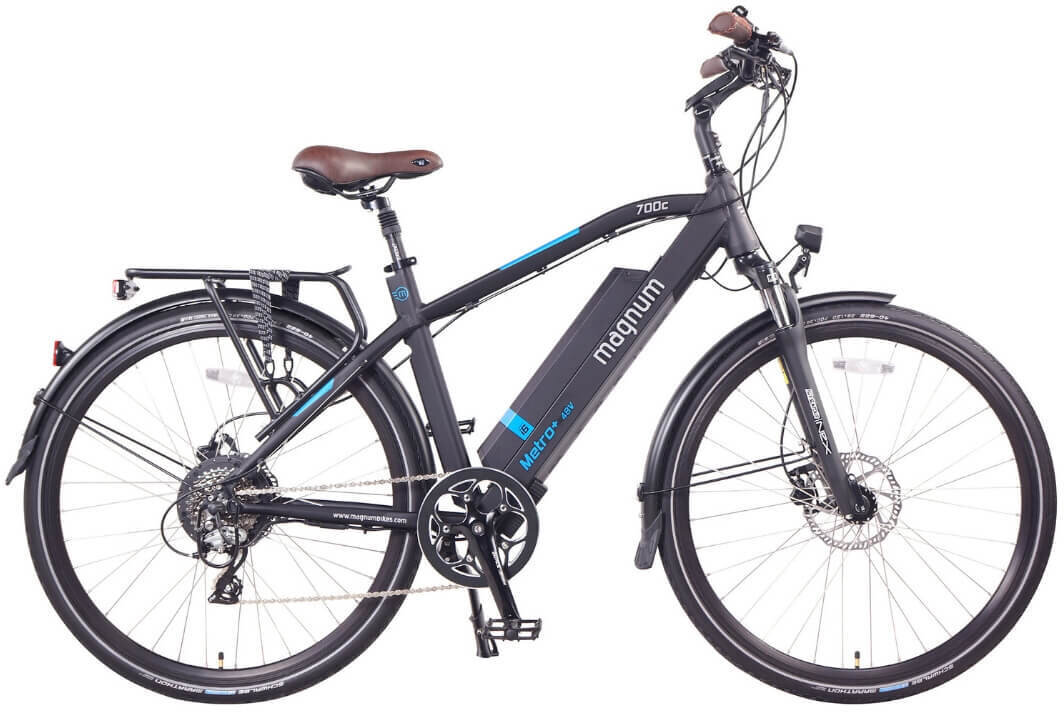

Magnum Metro+
Body Position:
Upright
Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty:
1 Year Comprehensive
Max Load:
265lbs

ELECTRONIC DETAILS
Motor Type:
Das-kit R4 Rear Geared Hub Motor
Motor Output:
48v 500w
Battery Voltage / Amp Hours / Watt Hours:
48v / 13ah / 624wh / With Usb Port
Battery Chemistry:
Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time:
6.5 Hrs
Estimated Min And Max Range:
30 To 60 Miles (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)
Display Type:
Das-kit C7, Fixed, Backlit, Monochrome Lcd
Display Records:
Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes:
Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed:
25mph With Pedal Assist, 20mph Throttle Only
Lights:
Integrated Front Headlight, Independent Rear Light “2AAA batteries”

BICYCLE DETAILS
Total Weight:
55lbs
Battery Weight:
9lbs
Frame Type:
High Step or Low Step
Frame Material:
6061 Aluminum Alloy
Fork Details:
Sr Suntour Nex Spring Suspension With Preload Adjustment, 63mm Travel
Attachment Points:
Rear Rack Bosses, Fender Bosses
Gearing Details:
Shimano, Acera M360 Derailleur, 8 Speed
Shifter Details:
Shimano Altus M310 8 Speed Trigger Shifter
Cranks:
Prowheel 48t Chainring With Alloy Guard, 170mm, Square Taper Bottom Bracket
Pedals:
Wellgo Aluminum Platform, B087
Stem:
Promax, Ma-579, Tool-free Adjustable,100mm Length
Brake Details:
Tektro Auriga Hydraulic Disc Brakes With Motor Inhibitors, 180 Mm Rotors
Grips:
Selle Royal Brown
Saddle:
Selle Royal Polygel
Seatpost / Seatpost Dimensions:
Promax, Sp-884 / 27.2 X 340mm
Fenders:
Front And Rear
Rims:
Aluminum Alloy, Double Walled, 36 Hole
Tires:
Schwalbe Marathon 700 X 38c/ Kevlar Lined, Reflective Sidewall Stripe / Schrader Valve
Wheel Size:
700 X 38c
