Model:

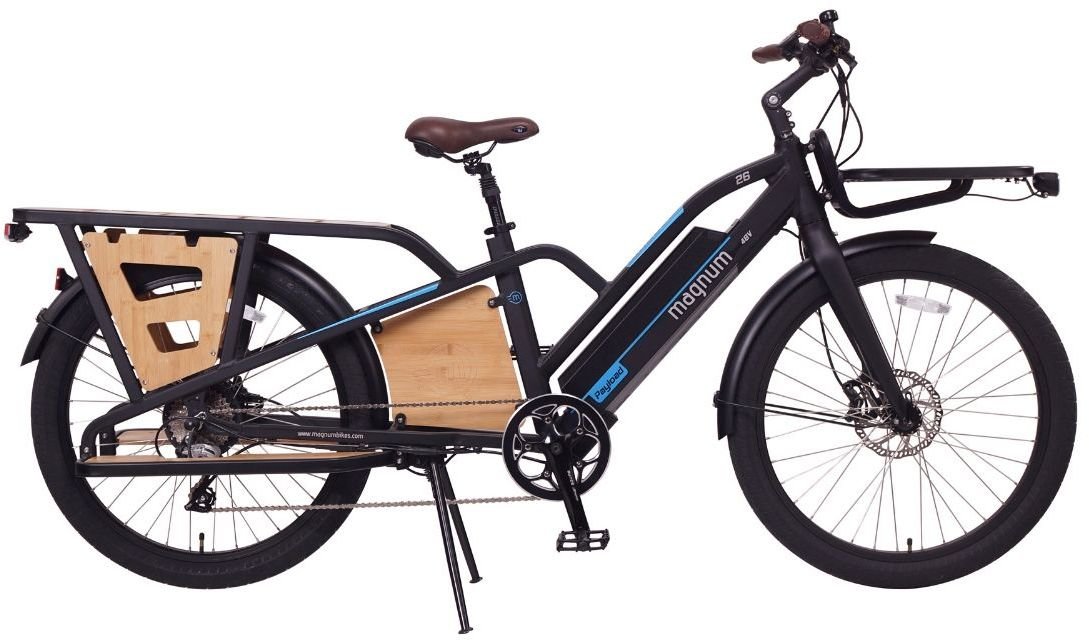

Magnum Payload Cargo E-Bike
Body Position:
Upright
Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty:
1 Year Comprehensive

ELECTRONIC DETAILS
Motor Type:
Das-kit Rear Geared Hub Motor
Motor Output:
48v 500w
Battery Voltage / Amp Hours / Watt Hours:
48v / 13ah / 624wh
Battery Chemistry:
Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time:
6 Hrs
Estimated Min And Max Range:
25 To 55 Miles (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)
Display Type:
Das-Kit C7 Fixed, Backlit, Monochrome Lcd
Display Records:
Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes:
Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed:
25mph With Pedal Assist, 20mph Throttle Only
Lights:
Front and rear light

BICYCLE DETAILS
Frame Type:
Step-thru Cargo
Frame Material:
6061 Aluminum Alloy
Fork Details:
Rigid Alloy Fork
Gearing Details:
Shimano, Acera RDM360 Derailleur, 8 Speed
Shifter Details:
Shimano Altus M310 8 Speed
Cranks:
Prowheel 165mm 48T
Pedals:
Wellgo
Stem:
Promax MA-579
Brake Details:
Tektro Hydraulic Disc Brakes 180mm Front Rotor, 160mm Rear Rotor
Grips:
Selle Royal
Saddle:
Selle Royal Brown
Seatpost / Seatpost Dimensions:
Promax Aluminum with suspension, 27.2 X 350mm
Fenders:
Front And Rear
Tires:
CST
Wheel Size:
26? X 1.75?
