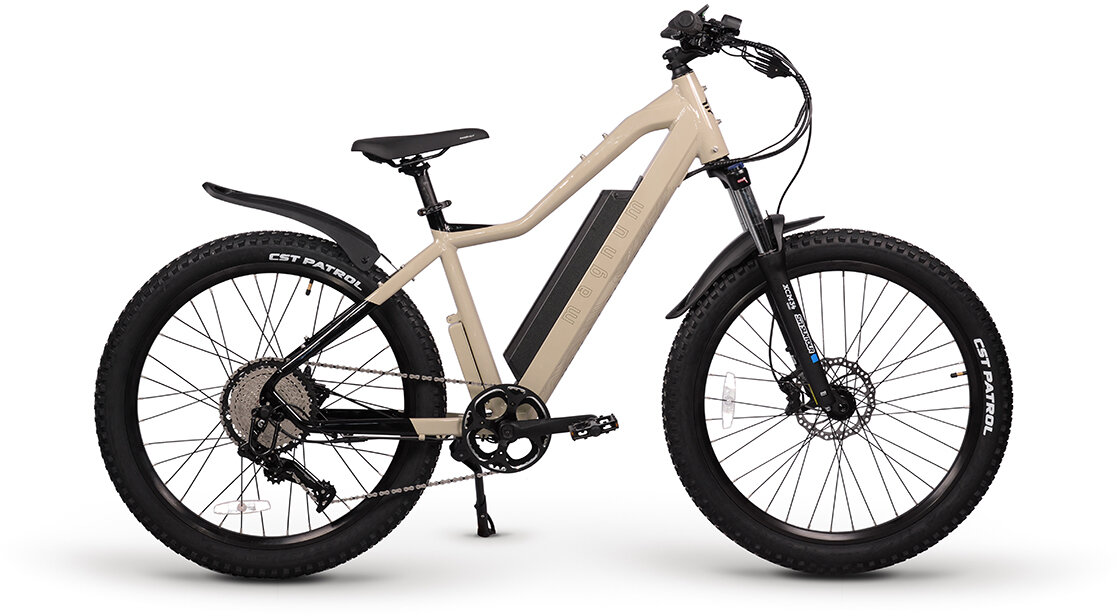

Magnum Electric Bikes Peak T5

Magnum Electric Bikes Peak T5
  • Color: Forest
  • Color: Tan
  • Color: Grey
Please select options


The Peak T5 has a torque pedal assist sensor that works in tandem with the rider for a more energy efficient ride (saving battery power). The 1×11 wide range drive train eliminates the front derailleur streamlining the bike and decreasing weight. These features powered by a 500W 48V power system with a top speed of 25 MPH make the Peak T5 an ideal choice for trail riding.

Bike Weight: 60 lbs
Battery Weight: 9 lbs
Max load: 265 lbs

  • Torque Sensing Pedal Assist
  • Trigger Throttle
  • Walk Mode

Controlled by display


Motor 500w
Battery 48v / 15Ah / 720Wh
Display Magnum Branded Velofox, 3.5? Diagonal, Fixed, Monochrome, Backlit LCD; Display Records: Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Max Assisted Speed 25mph With Pedal Assist, 20mph Throttle Only
Range 30 To 50 Miles (Depending On Riding Style, Terrain, Rider Weight And Pedal Assist Level.)
Charger Estimated Charge Time: 7.5 Hrs
Frame 6061 Aluminum Alloy
Fork Sr Suntour XSM34 Boost
Tires CST Patrol, 27.5" X 2.8"
Crankset Prowheel 42t chainring 170mm crank arms
Rear Derailleur 11 speed
Cassette/Rear Cogs 11-50t
Shifters Shimano Altus
Tape/Grips Ergonomic Black Rubber
Stem 60 mm Length, Aluminum Alloy
Brakes 4-Piston Hydraulic Brakes
Pedals Wellgo Aluminum Platform
Saddle Selle Royal Essenza+
Seatpost Promax, 30.4
Accessories & Extras Fenders: Front & Rear MTB-style

* Subject to change without notice.

Part Numbers

Option MPN
Forest Peak T5 - GRN
Tan Peak T5 - TAN
Grey Peak T5 - GRY
