Details

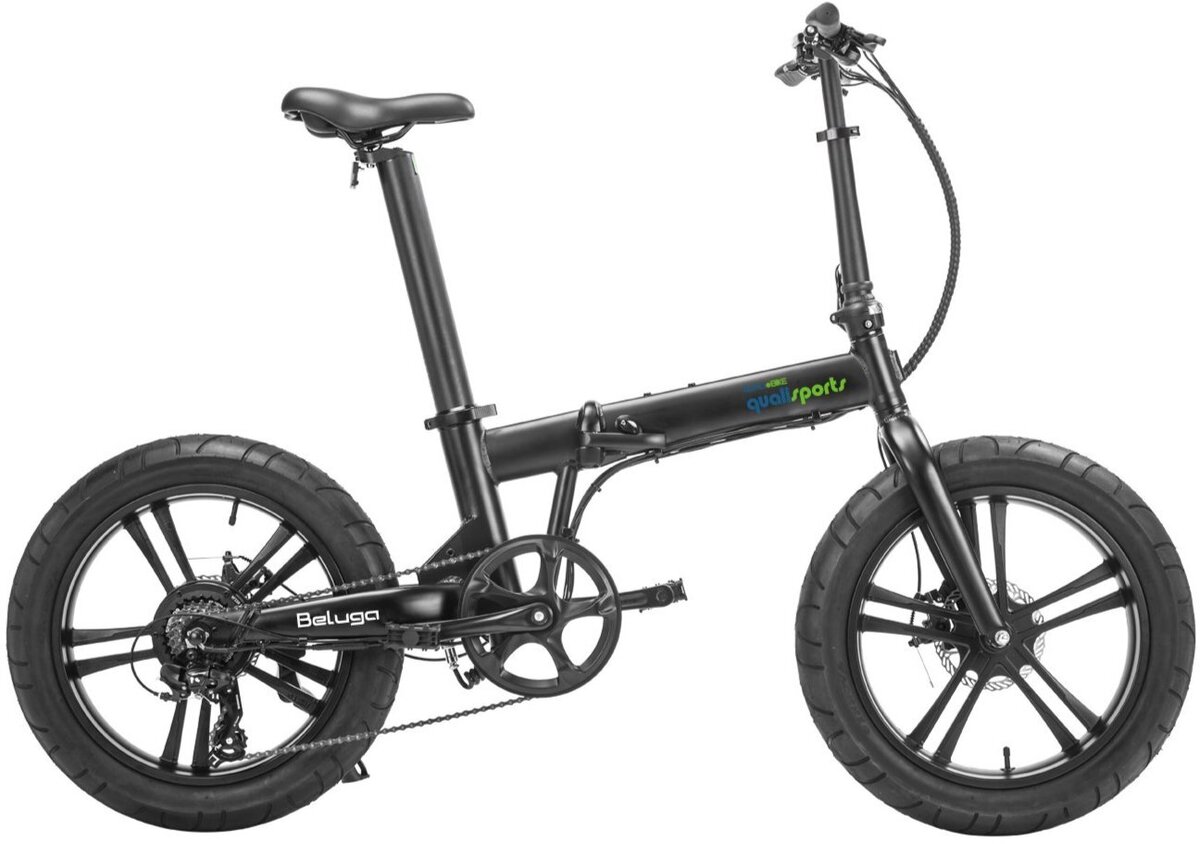

Qualisports most powerful folding bike with a 500W motor comes in at only $1499! With 20x4" fat tires you'll be riding in comfort.
Quick Glance Specs:
-500W motor
-48V 10.5Ah battery
-25 mile range
-20mph top speed
-66lbs
FOLDING FRAME
The Beluga frame and fork is made of industry grade Aluminum Grade 6061. Our new design is sleek, light and strong enough for a Cyclist weighing 300lbs to feel comfortable on it.
Easily folds down to a compact size for easy storage and transportation.
MOTOR
Customized 500W high speed geared brushless motor with enough pulling power so you can effortlessly conquer a 18° climb. Brushless motors are smoother, more efficient and no magnetic drag when you ride the bike without any power.
SHIMANO 7-SPEED GEAR SHIFTING SYSTEM
The Beluga is equipped with a Shimano Tourney 7 speed mechanical gear system, so every Quali-Biker can experience a much more fantastic riding especially when you are hilling.
PAS PEDAL ASSIST SYSTEM
Our multifunction fully integrated large LCD display features a 12 point sensor and “FOC” technology (Field Oriented Control). With FOC we can control and drive motors with higher efficiency and less noise and operates in sync with our PAS “Pedal Assist System”.
MULTIFUNCTIONAL LCD DISPLAY
You have four choices of either riding with PAS, or with the Cruise Control Mode, Pedal like a normal bicycle or throttle mode (available). The intuitive sensor can detect every mode and precisely respond creating a seamless riding experience.
BATTERY
The BELUGA’s distinctive look is achieved through the work and dedication of our designers and engineers combined efforts to strategically place the Lithium battery within the seat-post, integrating functionality and design to power the e-bike.
The seat-post battery is removable so you can either charge it in the bike or separately in your room. The battery is a 48V 10.5Ah Samsung Battery capacity which charges in 7 Hours.
BRAKING SYSTEM
The Beluga features Front and Rear disc brakes to keep you safe. When the brakes are engaged it triggers a safety mechanism that disengages the motor and shuts down the power system.
Specs:
Product Name: Beluga
Model Name: QSEB04
Size: 65.5*25.5*46.5 inch
Folding Size: 34.25*18.50*28.35 inch
Wheelbase: 43.5 inch
Net Weight: 66 lbs
Range: 25+ Miles (PAS)
Max. Load: 300 lbs
Max. Speed: 20 MPH
Charging Time: 7 Hrs
Battery Type: Samsung Lithium-ion
Battery Capacity: 48V 10.5Ah
Noise: = 62 dB(A)
Motor: MXUS 500W Brushless Geared DC Motor
Rated Output Power: 500W
Motor Efficiency: = 78%
Rated RPM: 310±10 r/min
Rated Voltage: 48V
Max Torque: 60 N.m
Overcurrent Protection: 15±1A
Low-voltage Protection: 30±1V
Kwh: = 1.2 Kw.h
Modes: 5 Levels + Throttle + Walk Assist + Cruise
Specs
Frame | 20 inch 6061 Al-alloy Foldable |
---|---|
Fork | 20 inch 6061 Al-alloy |
Rims/Wheels | 20 inch Al-alloy Blade |
Tires | CST Big Boat 20 x 4" |
Chainrings | Prowheel 52T |
Chain | KMC |
Rear Derailleur | Shimano 7 Speed |
Cassette/Rear Cogs | Shimano 14-28T |
Handlebars | Promax |
Brake Levers | Al-alloy Ebike Lever |
Pedals | Foldable |
Saddle | KNUS |
Folded Dimensions | 34.25x18.50x28.35 inch |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Satin Black | Beluga - Black | 210000011479 |
Glossy Metallic Grey | Beluga - Grey | 210000011455 |
