Details

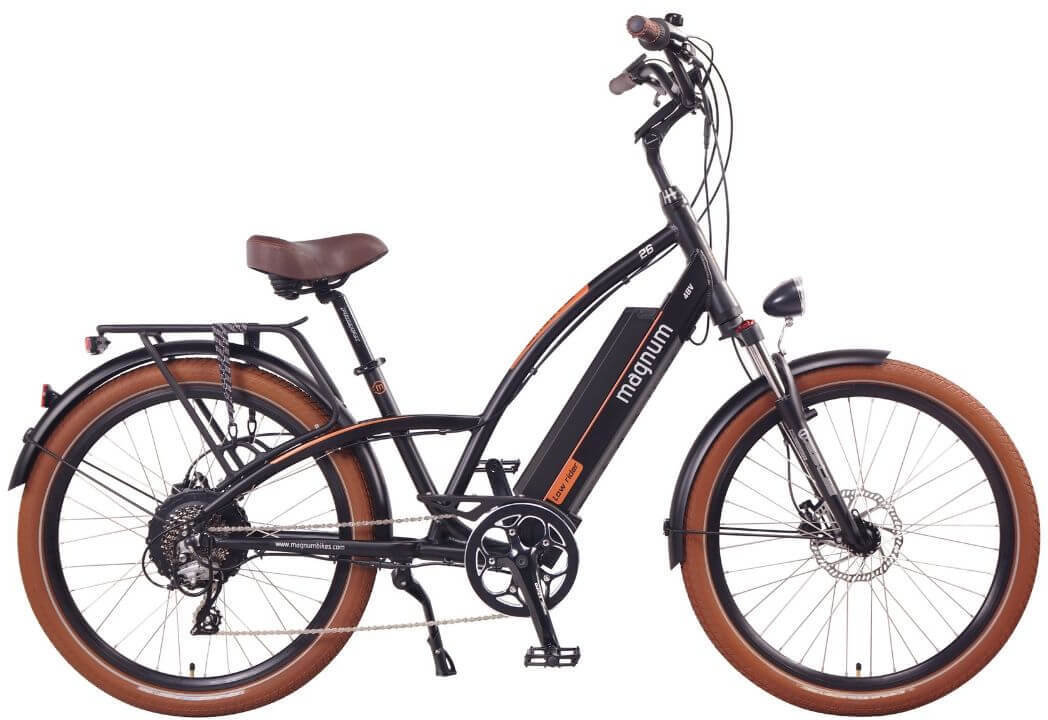

Magnum Lowrider Cruiser (The Low Step Version Of The Magnum Cruiser)
Body Position:
Upright, Upright Relaxed
Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty:
1 Year Comprehensive
Max Load:
265lbs
ELECTRONIC DETAILS
Motor Type:
Das-kit R4 Rear Geared Hub Motor
Motor Output:
48v 500w
Battery Voltage / Amp Hours / Watt Hours:
48v / 13ah / 624wh / With Usb Port
Battery Chemistry:
Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time:
6.5 Hrs
Estimated Min And Max Range:
30 To 60 Miles (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)
Display Type:
Das-kit C7, Fixed, Backlit, Monochrome Lcd
Display Records:
Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes:
Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed:
25mph With Pedal Assist, 20mph Throttle Only
Lights:
Independent Front Headlight, Independent Rear Light
BICYCLE DETAILS
Total Weight:
59lbs
Battery Weight:
9lb
Frame Type:
Low Step
Frame Material:
6061 Aluminum Alloy
Fork Details:
Rst Neon-tnl, Adjustable Spring Suspension With Lockout
Attachment Points:
Rear Rack Bosses, Fender Bosses
Gearing Details:
Shimano, Acera M360 Derailleur, 8 Speed
Shifter Details:
Shimano Grip Revoshift 8 Speed
Cranks:
Prowheel 48t Chainring With Alloy Guard, 170mm, Square Taper Bottom Bracket
Pedals:
Wellgo Aluminum Platform, B087
Stem:
Promax, Mq-579, Tool-free Adjustable, 100mm Length
Brake Details:
Tektro Hydraulic Disc Brakes With Motor Inhibitors
Grips:
Selle Royal Brown
Saddle:
Selle Royal Cruiser With Gel And Dual Spring Suspension
Seatpost / Seatpost Dimension:
Promax, Sp-252 / 30.4 X 300mm
Fenders:
Front And Rear
Rims:
Aluminum Alloy, Double Walled, 36 Hole
Tires:
Schwalbe Big Ben, Reflective Sidewall Stripe, Kevlar Lined, Schrader Valve
Wheel Size:
26? X 2.15?, 26in (66.04cm)
