Details

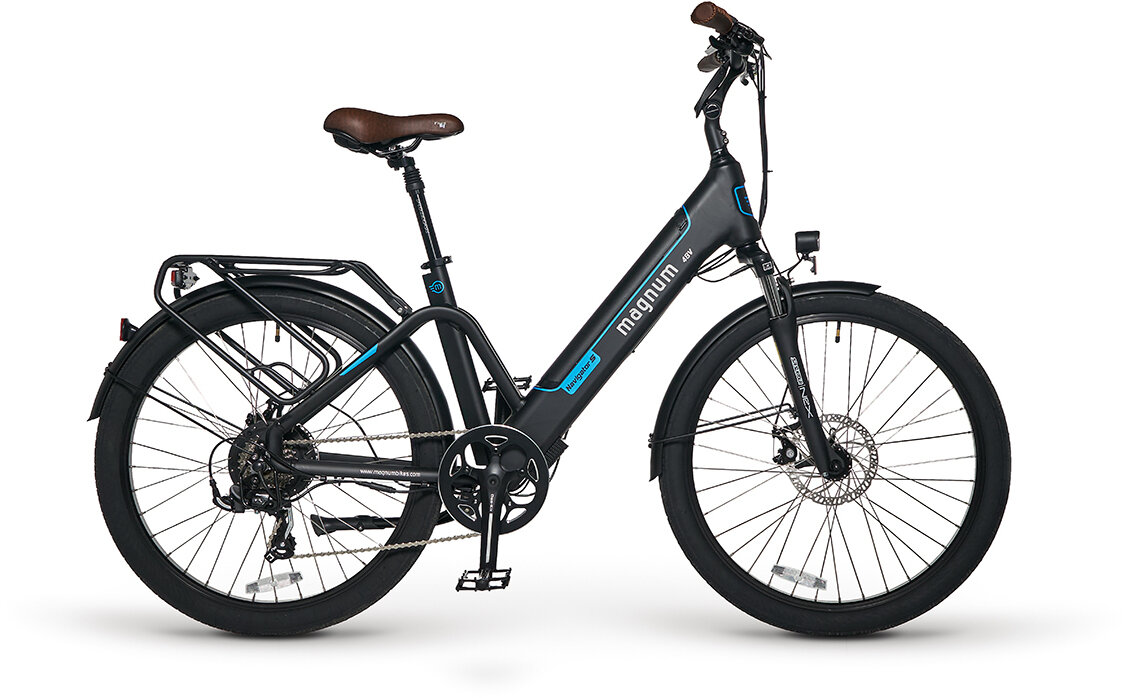

A beautifully designed, purpose-built electric bike well suited to urban riding or commuting. Step-thru frame for easy mounting and dismounting. Powerful 500W 48V power system with a fully integrated battery. One-year limited warranty.
Bike Weight: 58 lbs
Battery Weight: 9 lbs
NAVIGATOR S MEASUREMENTS
A. MAX SEAT HEIGHT 75cm
B. MIN SEAT HEIGHT 58.5cm
C. STANDOVER HEIGHT 46cm
D. HANDLEBAR HEIGHT 102cm – 109cm
E. WHEELBASE 98cm
F. TOTAL LENGTH 172cm
REACH 58cm
SEAT TUBE 43cm
Specs
Motor | 500W |
---|---|
Battery | 48V / 10Ah / 480Wh |
Display | Das-Kit Fixed, Backlit, Monochrome Lcd; Display Records: Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage |
Max Assisted Speed | 25mph With Pedal Assist, 20mph Throttle Only |
Range | 20 To 35 Miles (Depending On Battery, Riding Style, Terrain, Rider Weight And Pedal Assist Level.) |
Charger | Estimated Charge Time: 5 Hours (For a full charge) |
Frame | Aluminum |
Fork | SR Suntour NEX with Preload Adjustment |
Tires | CST City Tire 26" x 2.15" |
Rear Derailleur | Shimano Tourney Derailleur 7 Speed |
Shifters | Shimano 7 Speed |
Stem | Promax Tool-free Adjustable |
Brakes | Tektro Mechanical Disc Brakes |
Pedals | Wellgo Platform |
Saddle | Selle Royal Brown |
Seatpost | Promax Aluminum with suspension, 27.2 X 250mm |
Accessories & Extras | Fenders: Front And Rear |
* Subject to change without notice.
Part Numbers
Option | MPN |
---|---|
Black w/ Blue | Navigator S MB-BLU |
White w/ Blue | Navigator S MW-BLU |
