Details

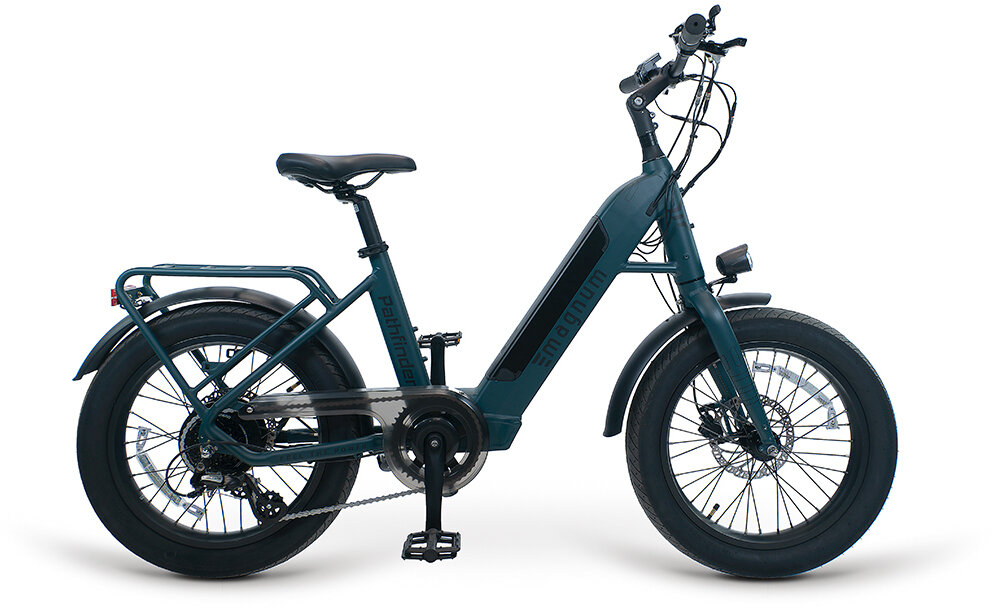

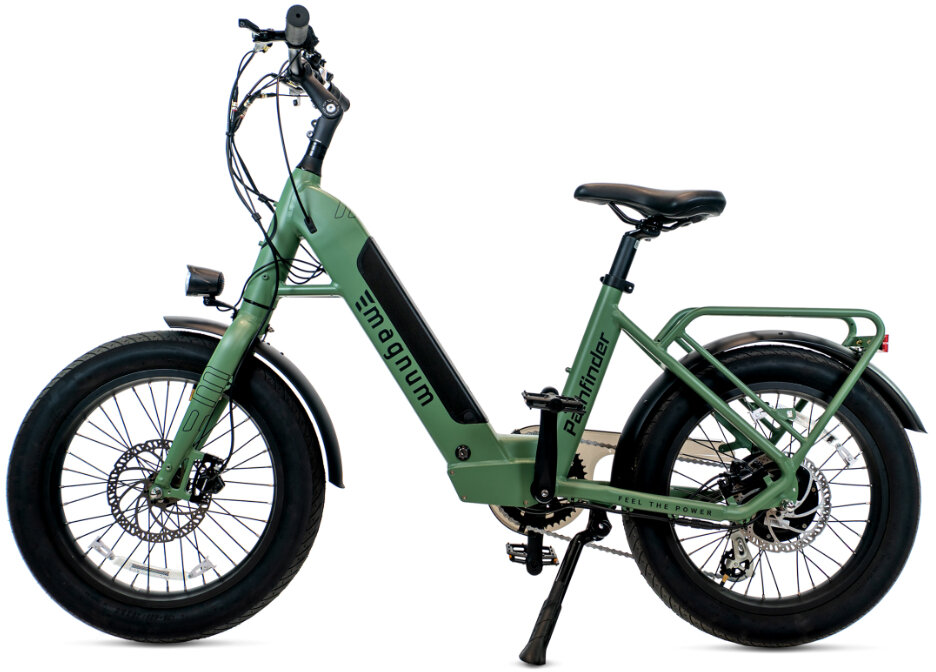

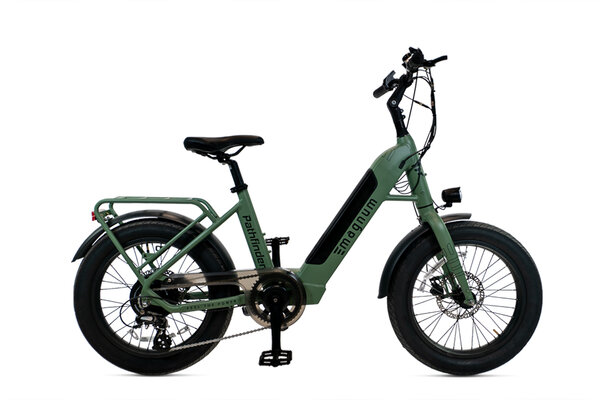

Work hard, play hard. The Magnum Pathfinder is a versatile e-bike which can be used for commuting, recreation, exercise and more. The unisex step-through frame is well-suited for riders across a broad range of height and physical ability.
Body Position: Upright | Electric Bike Class: Throttle On-demand (Class 2), Speed Pedelec (Class 3); *Throttle can be removed for Class 1 | Max Load: 265lbs | Includes 1-yr Limited Warranty
Bike weight: 62 lbs
Battery weight: 9 lbs
Max load: 265 lbs
PATHFINDER 500 MEASUREMENTS
A. MAX SEAT HEIGHT 36?
B. MIN SEAT HEIGHT 26?
C. STANDOVER HEIGHT 14.5?
D. HANDLEBAR HEIGHT 39? – 41.5?
E. WHEELBASE 44?
F. TOTAL LENGTH 66?
HANDLEBAR WIDTH 24?
SEAT TUBE 15?
Designed for performance and comfortability when riding over most terrain
Blends in smoothly with the frame for a sleek look, and provides for a 30 – 50 mile range depending on a number of variables like rider weight, cargo weight, terrain, wind direction, and pedal assist level
Packs 48v / 500w of power with 5 modes of pedal assist, for speeds of up to 25 mph
Integrated powerful front headlight and rear light
To bring you to a smooth, controlled stop
Specs
Motor | 500w |
---|---|
Battery | 48v / 13ah /624wh |
Display | Bigstone H102 Display; Display Readouts: Speed (mph or kmh), Frontlight on/off, Assist Level 0-5, Battery Level, Odometer, Trip Distance, Range (estimated remaining mileage) |
Max Assisted Speed | 25 mph |
Range | 25 To 45 Miles (Depending On Riding Style, Terrain, Rider Weight, and Pedal Assist Level.) |
Charger | Estimated Charge Time: 6.5 Hrs |
Fork | Fixed Alloy |
Rims/Wheels | 20" |
Tires | Innova 20" x 3" fat tire |
Rear Derailleur | Shimano Altus 7 Speed |
Shifters | Shimano Altus |
Stem | Adjustable Alloy |
Brakes | Tektro Hydraulic disc brakes |
Saddle | VELO saddle |
Seatpost | Rigid |
Accessories & Extras | Rear rack, front and rear fenders |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Forest | Pathfinder-GRN-500W | 210000010601 |
Ocean | Pathfinder-BLU-500W | 210000010597 |
Sand | Pathfinder-SND-500W | 210000010603 |
Snow | Pathfinder-W-500W | 210000010599 |
