Details

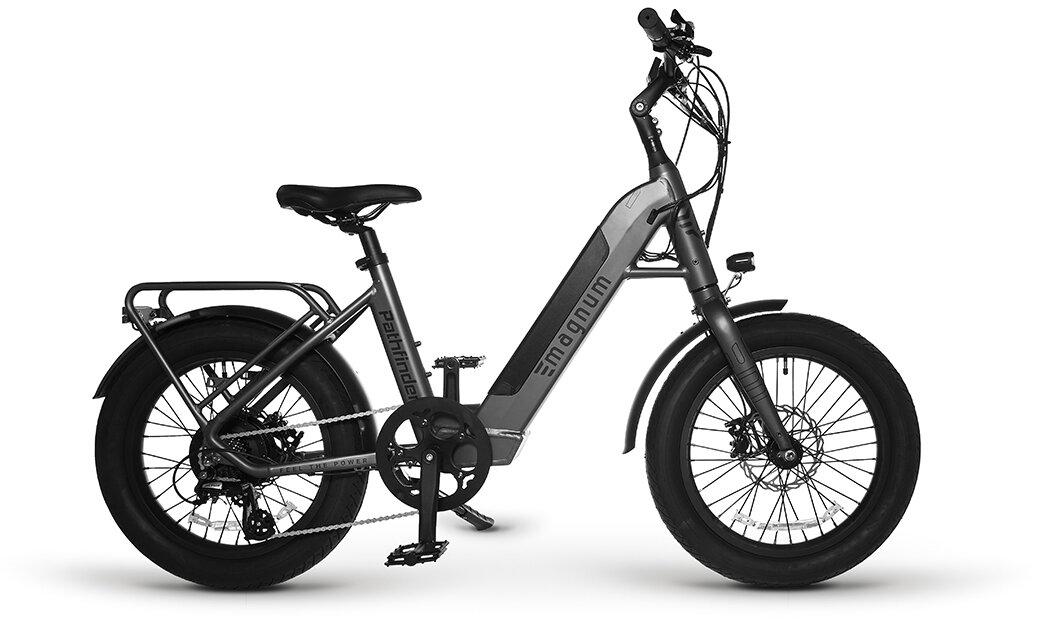

Work hard, play hard. The Magnum Pathfinder T is a versatile e-bike which can be used for commuting, recreation, exercise and more. The unisex step-through frame is well-suited for riders across a broad range of height and physical ability. The new Torque pedal assist gives the rider more control then ever before.
Body Position: Upright | Electric Bike Class: Throttle On-demand (Class 2), Speed Pedelec (Class 3); *Throttle can be removed for Class 1 | Max Load: 265lbs | Includes: One Year Limited Warranty
Bike Weight: 60 lbs
Battery Weight: 9 lbs
Max Load: 265 lbs
PATHFINDER 500 MEASUREMENTS
A. MAX SEAT HEIGHT 36"
B. MIN SEAT HEIGHT 26"
C. STANDOVER HEIGHT 14.5"
D. HANDLEBAR HEIGHT 39" – 41.5"
E. WHEELBASE 44"
F. TOTAL LENGTH 66"
HANDLEBAR WIDTH 24"
SEAT TUBE 15"
Designed for performance and comfortability when riding over most terrain
For full and precise control
Blends in smoothly with the frame for a sleek look, and provides for a 40 – 60 mile range depending on a number of variables like rider weight, cargo weight, terrain, wind direction, and pedal assist level
Packs 48v / 500w of power with 5 modes of pedal assist, for speeds of up to 25 mph
Integrated powerful front headlight and rear light
To bring you to a smooth, controlled stop
Specs
Motor | 500w |
---|---|
Battery | 48v / 13ah /624wh |
Display | Bigstone H102 Display; Display Readouts: Speed (mph or kmh), Frontlight on/off, Assist Level 0-5, Battery Level, Odometer, Trip Distance, Range (estimated remaining mileage) |
Max Assisted Speed | 25 mph |
Range | 25 To 45 Miles (Depending On Riding Style, Terrain, Rider Weight, and Pedal Assist Level.) |
Charger | Estimated Charge Time: 6.5 Hrs |
Fork | Fixed Alloy |
Rims/Wheels | 20" |
Tires | Innova 20" x 3" fat tire |
Rear Derailleur | Shimano Altus 7 Speed |
Shifters | Shimano Altus |
Stem | Adjustable Alloy |
Brakes | Tektro Hydraulic disc brakes |
Saddle | VELO saddle |
Seatpost | Rigid |
Accessories & Extras | Rear rack, front and rear fenders |
* Subject to change without notice.
Part Numbers
Option | MPN |
---|---|
Forest | Pathfinder T - GRN - 500W |
Ocean | Pathfinder T - BLU - 500W |
Sand | Pathfinder T - SND - 500W |
Snow | Pathfinder T - W - 500W |
Slate | Pathfinder T - GRY - 500W |
