Description
Model:

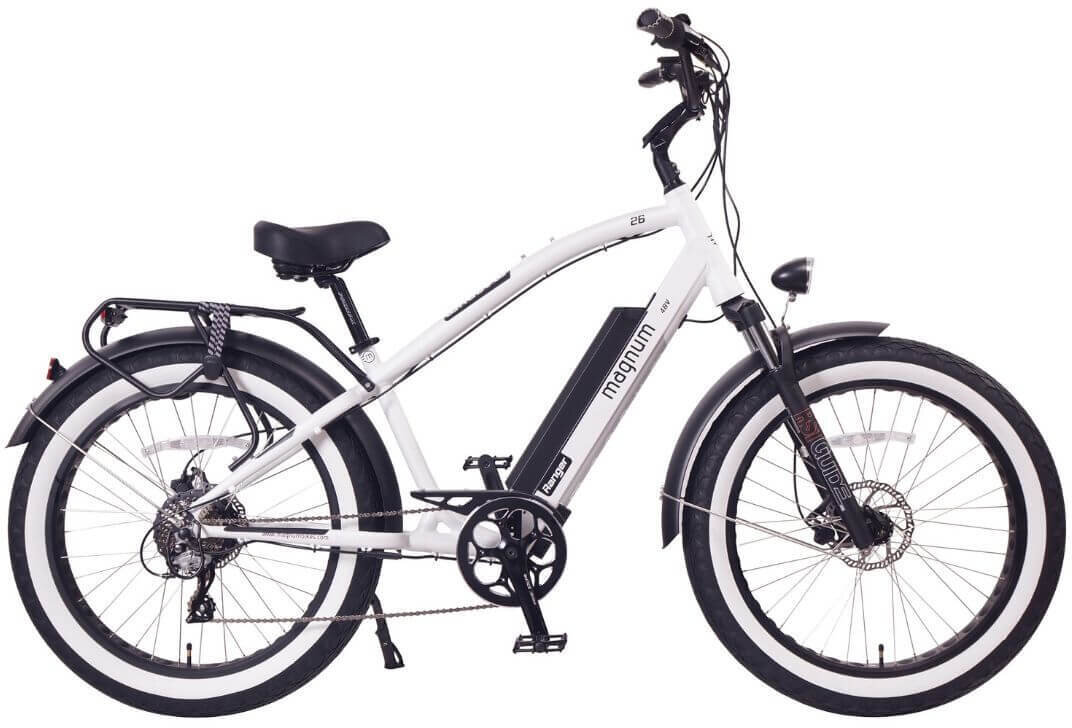

Magnum Ranger
Body Position:
Upright, Upright Relaxed
Warranty:
1 Year Comprehensive
Max Load:
265lbs

ELECTRONIC DETAILS
Motor Type:
Das Kit 750w Rear Geared Hub Motor
Motor Output:
48v 750w
Battery Voltage / Amp Hours / Watt Hours:
48v / 13ah / 624wh / With Usb Port
Battery Chemistry:
Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time:
6.5 Hrs
Estimated Min And Max Range:
25 To 75 Miles (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)
Display Type:
Das-kit C7, Fixed, Backlit, Monochrome Lcd
Display Records:
Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes:
Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed:
25mph With Pedal Assist, 20mph Throttle Only
Lights:
Independent Front Headlight, Independent Rear Light

BICYCLE DETAILS
Total Weight:
75lbs
Battery Weight:
9lbs
Frame Type:
High Step
Frame Material:
6061 Aluminum Alloy
Fork Details:
Rst Guide Spring Suspension, 80mm Travel With Lockout
Attachment Points:
Rear Rack Bosses, Fender Bosses
Gearing Details:
Shimano, Acera Derailleur, 8 Speed
Shifter Details:
Shimano Grip Revoshift 8 Speed, 11-32t
Cranks:
Prowheel Ounce 48t Chainring With Alloy Guard, 170mm, Square Taper Bottom Bracket
Pedals:
Wellgo Alloy Platform Vb087
Stem:
Promax, Tool-free Adjustable, 100mm Length
Brake Details:
Tektro Auriga Hydraulic Disc Brakes With Motor Inhibitors 180mm Front, 160mm Rear
Grips:
Selle Royal Brown
Saddle:
Selle Royal Cruiser With Gel And Dual Spring Suspension
Seatpost / Seatpost Dimensions:
Promax, Sp-252 / 30.9 X 300mm
Fenders:
Front And Rear
Rims:
Aluminum Alloy, Double Walled, Oval Cut Outs, 81mm Outer Diameter, 36 Hole
Tires:
Chao Yang H-5193
Wheel Size:
26" X 4.0”

RANGER MEASUREMENTS
A. MAX SEAT HEIGHT 39?
B. MIN SEAT HEIGHT 32.25?
C. STANDOVER HEIGHT 29?
D. HANDLEBAR HEIGHT 51?
E. WHEELBASE 54?
F. TOTAL LENGTH 78.5?
REACH 25.5?
SEAT TUBE 19.75?
