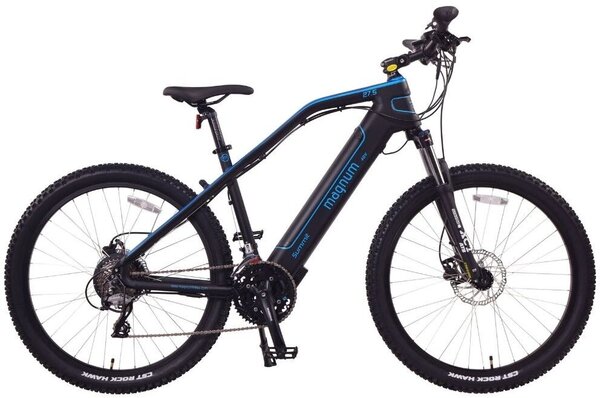

Magnum Electric Bikes Summit

Magnum Electric Bikes Summit
  • Color: Blue
  • Color: Blue
  • Color: Blue
  • Color: Green
  • Color: Orange
  • Color: Sand
$2,349.00
Please select options

Details

The Summit is the newest trail/mountain e-bike in the Magnum product line. It’s stand out features are the fully integrated battery for a sleek design and a range of accent colors span the top of the down tube. 48v, 500w power system with max speed of 25 MPH with pedal assist and 20 MPH throttle only. The sleek design and high-end components will turn heads.

Model:
Magnum Summit
Body Position:
Forward
Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty:
1 Year Comprehensive
Max Load:
265lbs

ELECTRONIC DETAILS
Motor Type:
Das-kit R4 Rear Geared Hub Motor
Motor Output:
48v 500w
Battery Voltage / Amp Hours / Watt Hours:
48v / 13ah / 624wh
Battery Chemistry:
Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time:
6.5 Hrs
Estimated Min And Max Range:
30 To 60 Miles (Depending On Riding Style, Terrain, Rider Weight and Peddle Assist Level.)
Display Type:
Fixed, Backlit, Monochrome Lcd
Display Records:
Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes:
Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed:
25mph With Pedal Assist, 20mph Throttle Only

BICYCLE DETAILS
Frame Type:
High Step with fully integrated battery
Frame Material:
Aluminum Alloy
Fork Details:
Sr Suntour XCT ATB Spring Suspension, 100mm, 80mm
Gearing Details:
24 Speed 3×8
Shifter Details:
Shimano Shifter
Cranks:
Shimano
Stem:
Promax, Aluminum Alloy
Brake Details:
Tektro Hydraulic Disc Brakes
Grips:
Velo Flat Rubber
Saddle:
Promax
Seatpost / Seatpost Dimensions:
Promax
Rims:
Aluminum Alloy
Tires:
CST Rock Hawk
Wheel Size:
27.5" (29") X 2.4

Part Numbers

Option MPN
Blue Summit 27.5 MB-BLU
Green Summit 27.5 MB-GRN
Orange Summit 27.5 MB-ORG
Sand Summit 27.5 MB-SND
